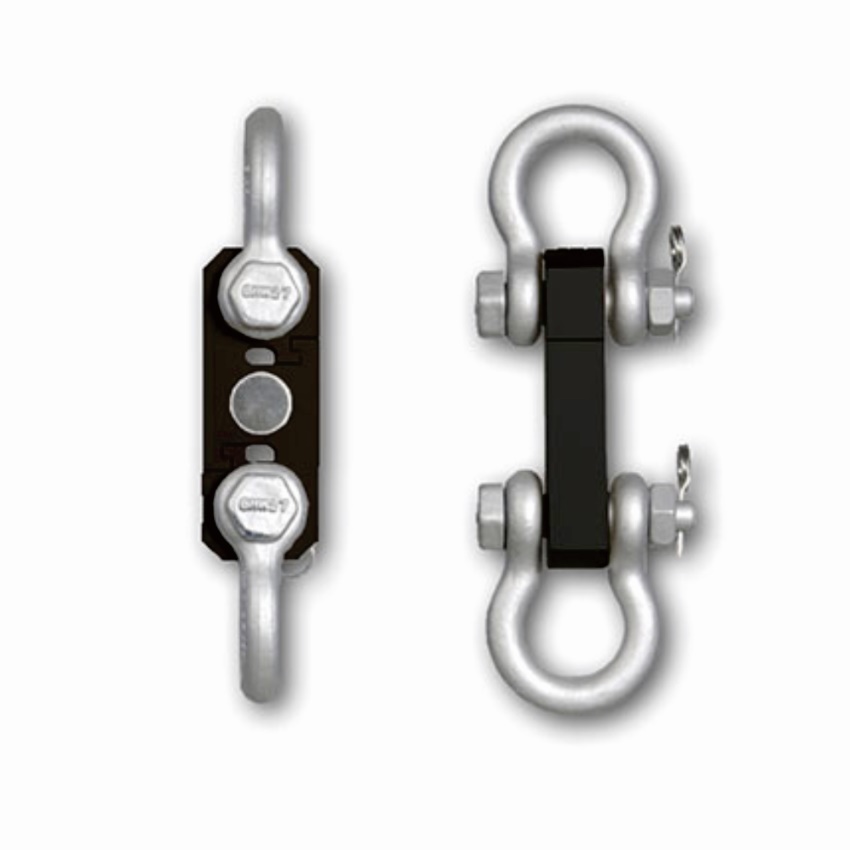

Compact and robust load-measuring cells form the heart of our load evaluation systems.
They are made in such a way as to allow them to be directly integrated into the load line,
thereby guaranteeing precise and uncompromised measurement of load values throughout the system.
The load values are evaluated by means of foil extenso meter strips implemented as strain-gauge full bridges.
When our special measurement amplifiers are used, high and reliable measurement accuracy is achieved.
The factory calibration of every individual load measuring cell and our sustained quality control guarantee a quality product
Made in Germany“ for the safe and accurate assessment of loads.
The many different possibilities for the integration of load cells in the suspension systems of our chain hoists permit compact installations,
even under difficult conditions and when headroom is limited.
Chain Master load sensors can also be used independently of lifting gear for the evaluation of loads attached to suspension and attachment points.
Technical Data
Static Safety Factor 5:1
Overload measurable 150%
Extremly Compact Design
High-Strength Steel Alloy
Exact Factory Setting
Strain Gage with Wheatstone-Bridge
Precision <0,1% of S.W.L.
Data Amplifier 4–20mA/0–10V
Power Supply 24VDC
SIL3-Version available
